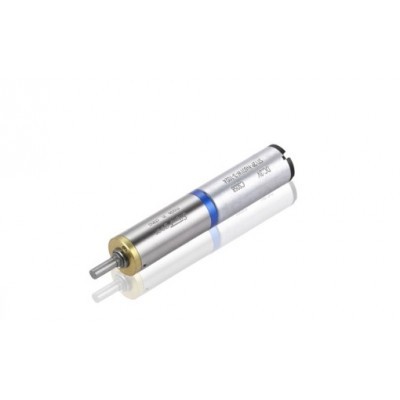

产品描述
减速电机在3VDC下的参数表
Stage 段数 | Ratio 减速比 | Rated current 额定电流 | Rated speed 额定转速 | Rated torque 额定扭矩 | Max.momentary current 最大瞬间电流 | Max.momentary torque 最大瞬间扭矩 | Weight 重量 | |
| 1 | 4:1 | 380 mA | 1925 RPM | 2.5 mNm | 545 mA | 3.8 mNm | ||
| 2 | 16:1 | 380 mA | 481 RPM | 8.1 mNm | 545 mA | 12.1 mNm | ||
| 3 | 64:1 | 380 mA | 120 RPM | 25.9 mNm | 545 mA | 38.8 mNm | ||
| 4 | 256:1 | 380 mA | 30 RPM | 82.8 mNm | 545 mA | 124.3 mNm | ||
| 5 | 1024:1 | 380 mA | 7.5 RPM | 265 mNm | 545 mA | 397.5 mNm | ||
减速电机在5VDC下的参数表
Stage 段数 | Ratio 减速比 | Rated current 额定电流 | Rated speed 额定转速 | Rated torque 额定扭矩 | Max.momentary current 最大瞬间电流 | Max.momentary torque 最大瞬间扭矩 | Weight 重量 | |
| 1 | 4:1 | 230 mA | 1925 RPM | 2.5 mNm | 330 mA | 3.8 mNm | ||
| 2 | 16:1 | 230 mA | 481 RPM | 8.1 mNm | 330 mA | 12.1 mNm | ||
| 3 | 64:1 | 230 mA | 120 RPM | 25.9 mNm | 330 mA | 38.8 mNm | ||
| 4 | 256:1 | 230 mA | 30 RPM | 82.8 mNm | 330 mA | 124.3 mNm | ||
| 5 | 1024:1 | 230 mA | 7.5 RPM | 265 mNm | 330 mA | 397.5 mNm | ||
| Gearbox stages | Length of gearbox X | Length of gearmotor L | |
| 齿轮箱段数 | 齿轮箱长 X | 减速电机总成 L | |
| 1 | 11.5 | 31.5 | |
| 2 | 15.0 | 35.0 | |
| 3 | 18.5 | 38.5 | |
| 4 | 22.0 | 42.0 | |
| 5 | 25.5 | 45.5 |
