Watch ESP32可编程开源电子手表智能穿戴手环墨水屏开发arduino

 本店不支持代发，所有产品图片，视频未经授权不支持转载上架到淘宝，1688，闲鱼，拼多多等平台，避免被投诉。

如果您是本店授权客户，请忽略以上信息，欢迎新老客户询价合作!

统一回复：我们的手表是最新硬件版本，加速度计陀螺仪开放，震动马达开放，更新固件开放！市面简化版因为硬件原因不支持一些功能，不能更新最新固件，请知悉！墨水屏幕的独有特性省电保护眼镜，但调整功能时屏幕有闪烁/迟缓现象，操作请耐心！！

2024年最新硬件版本WATCH V2.0-基于ESP32的完全开源和可定制的电子墨水手表

Watch是一款具有开源硬件和软件的电子纸手表。将PCB作为表身，可以按原样佩戴，也可以使用不同的3D打印表壳和表带进行进一步定制。这是一款独特的计时手表，也是一个可穿戴开发平台，预留了IO口，允许用户自己外接各种传感器，比如心率血氧传感器。
Watch的电子纸显示屏在明亮的阳光下提供清晰可见的美丽图像，并且在两次更新之间不需要电源。该显示器采用200x200像素和单色，具有独特的美感。

Watch同时具有WiFi和蓝牙LE连接，可以连接互联网API（例如天气、新闻、交通、地图、Spotify等）以及支持蓝牙LE的设备。

考虑到制造商/黑客/修补工，我们选择了ESP32，因为它的庞大社区和对各种开发选项的支持（Arduino, Micropython, ESP-IDF, Zephyr-RTOS, 等）

特点和规格

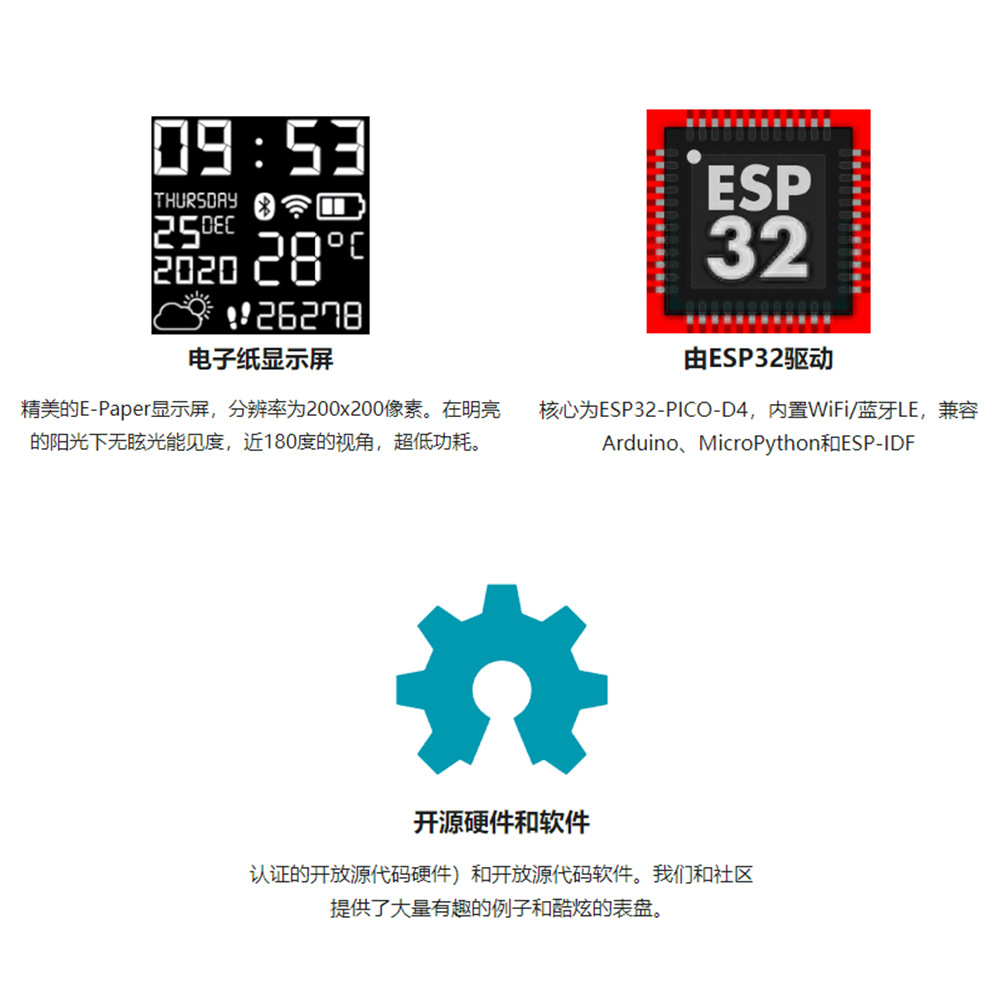

1.超低功耗电子纸1.54英寸显示屏，分辨率为200 x 200，视角较宽

2.Wi-Fi和蓝牙LE连接

3.3轴带手势检测的加速度计

4.实时时钟，具有日历和闹钟功能，可准确计时

5.内置USB到串行适配器，可随时随地进行编程

6.用于警报的振动电机

7.四个按钮（使用进口按钮，手感更好）

8.开源硬件和软件

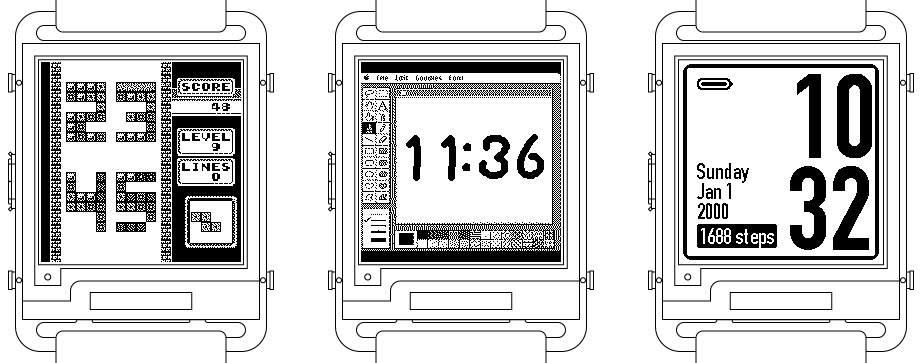

9.大量的例子和酷炫的表盘

10.开源三维案例设计

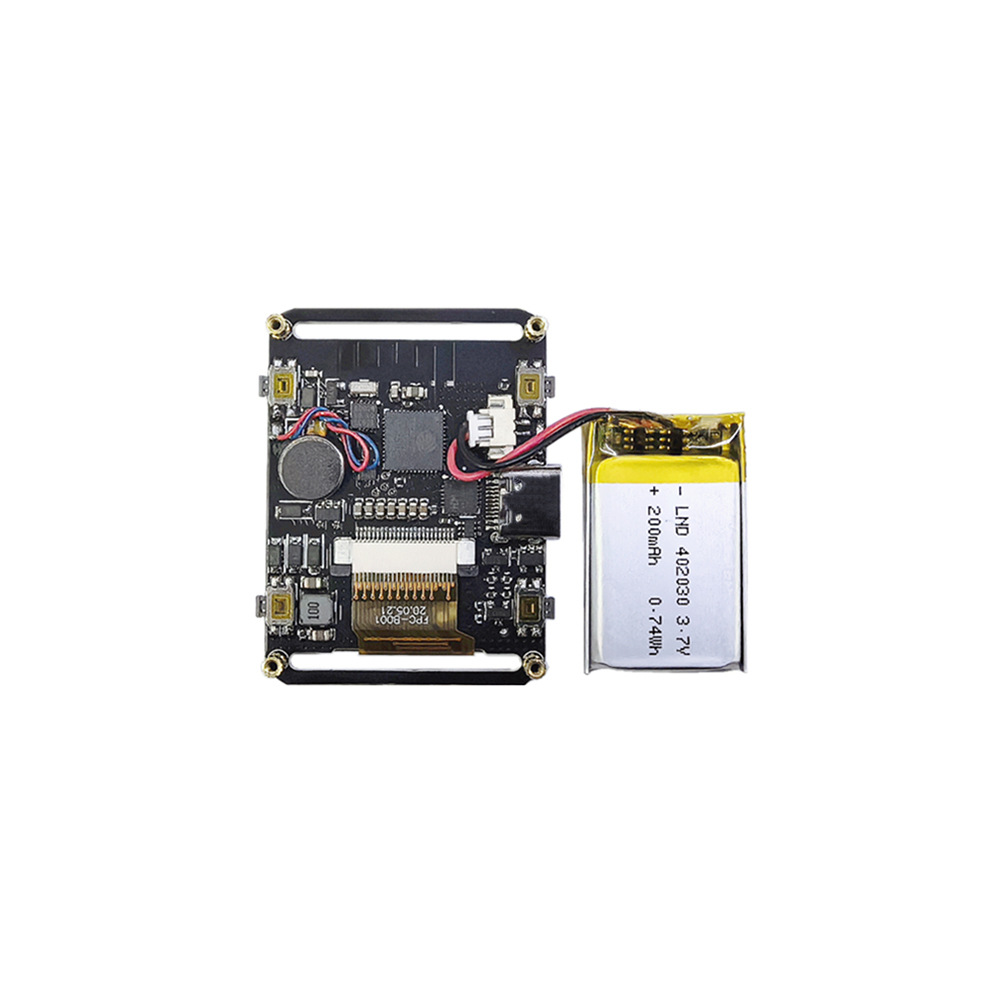

11.内置3.7V 200mAh电池

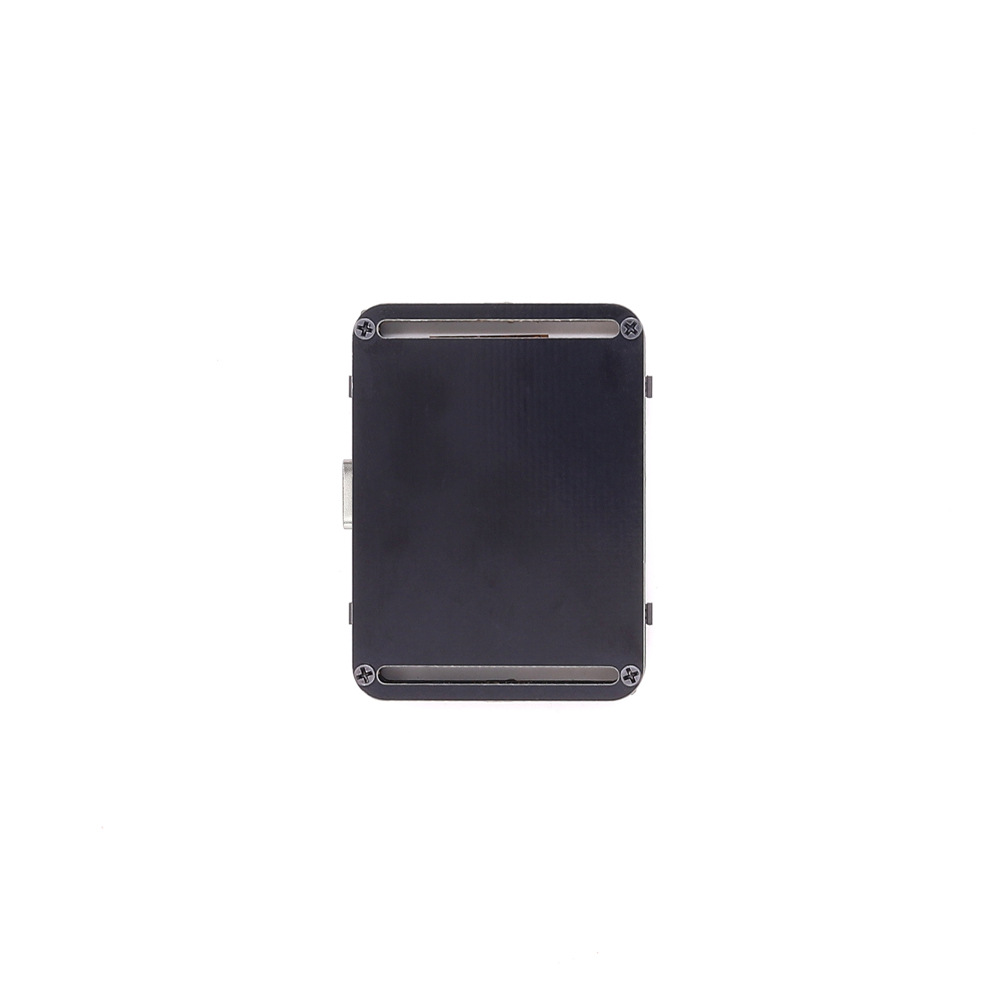

12.使用了PCB上下盖板，可以更好的保护屏幕,电池和主板上的各种元器件

电池寿命
Watch 每 60 秒醒来一次，检查加速计、实时时钟，并用最新信息更新电子纸显示屏。某些表盘还会打开 WiFi 来获取天气数据。
仅计时时，Watchy 的电池续航时间应为 5-7 天，而通过 WiFi 获取数据时，电池续航时间应为 2-3 天。这些数字可以通过进一步优化来扩展（例如，在非工作时间睡眠、仅在运动/倾斜时醒来等）
使用手册：请扫描产品包装上的二维码
特别注意：刷机时请务必选择硬件版本 V2.0
包含的包装：

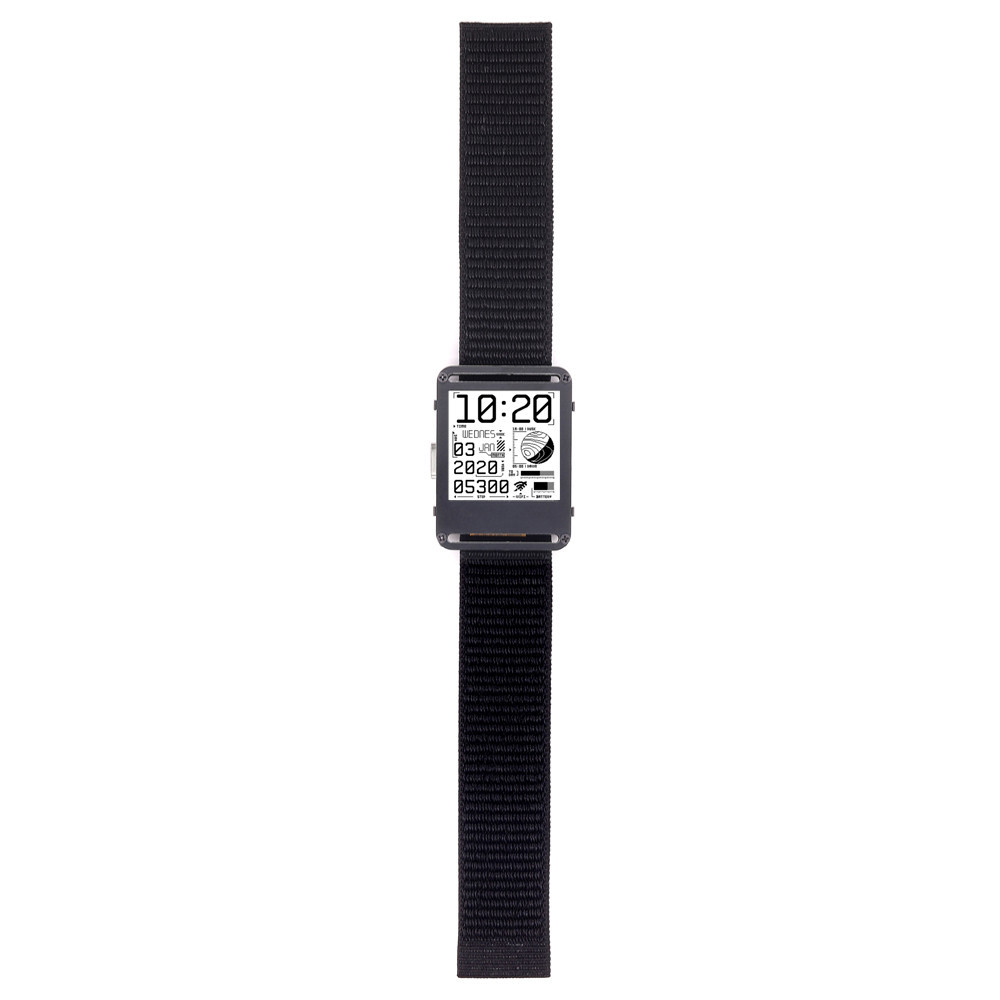

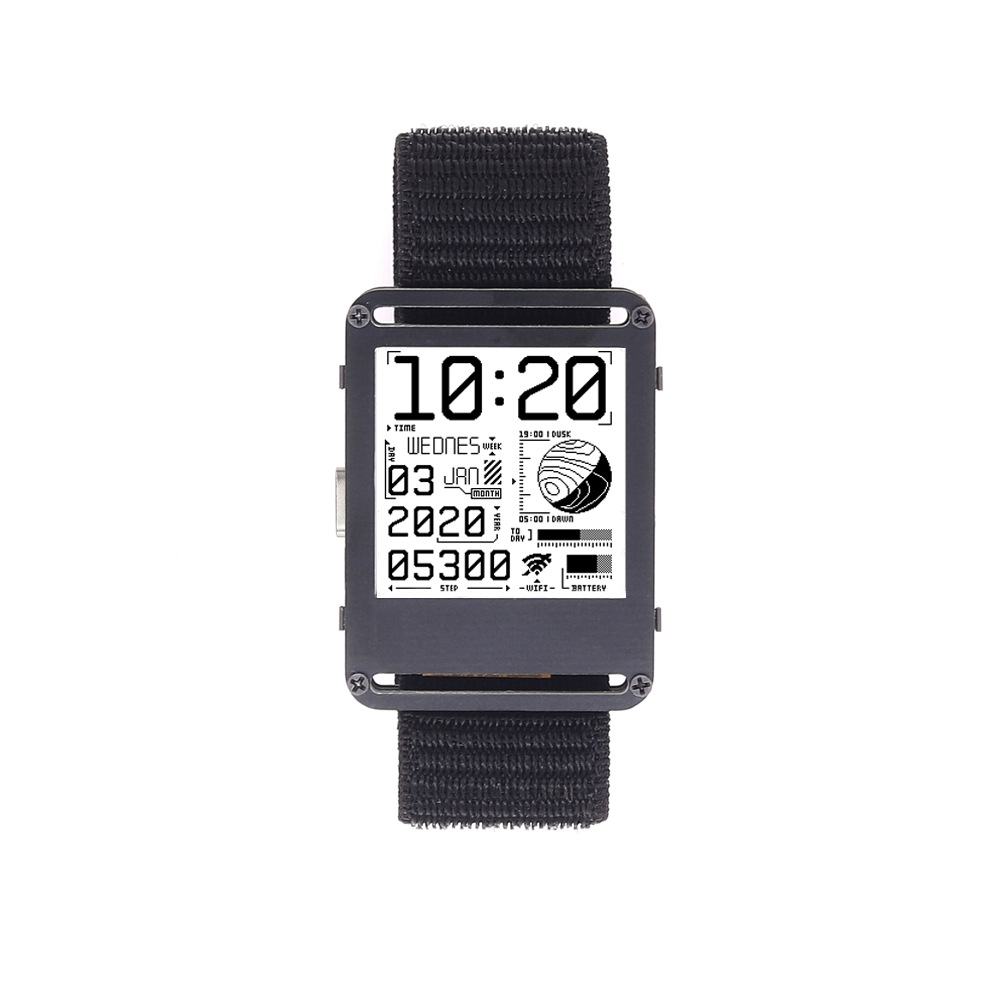

1 x Watch V2.0 内置200mAh电池.(45x34x10mm)
1X 尼龙魔术表带.（黑色 24mm x 250mm）

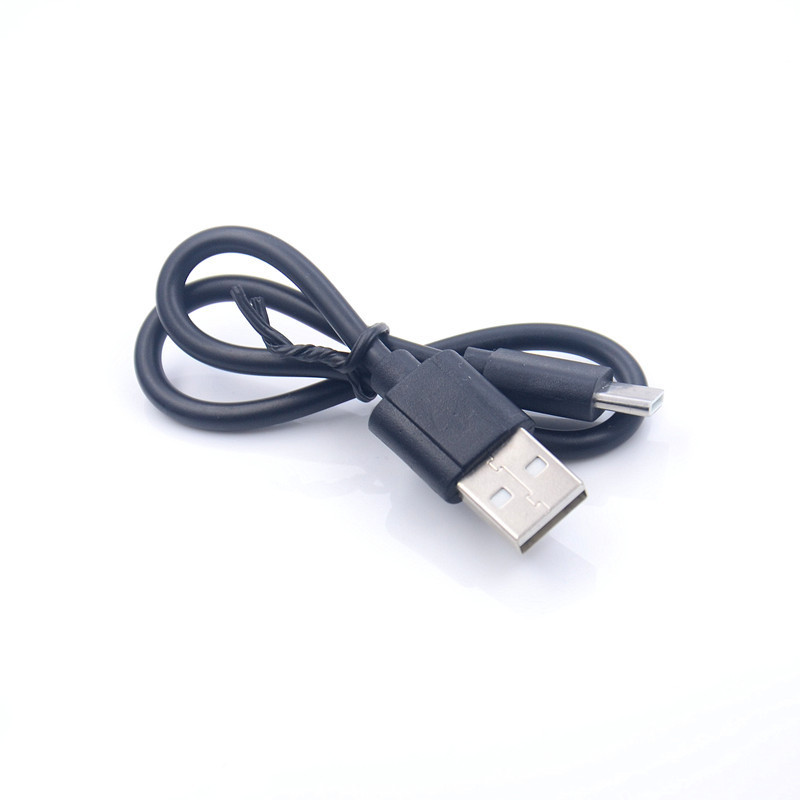

1X USB数据线

WATCH V2.0 - FULLY OPEN SOURCE & CUSTOMIZABLE E-INK WATCH baseD ON ESP32

What is Watch?

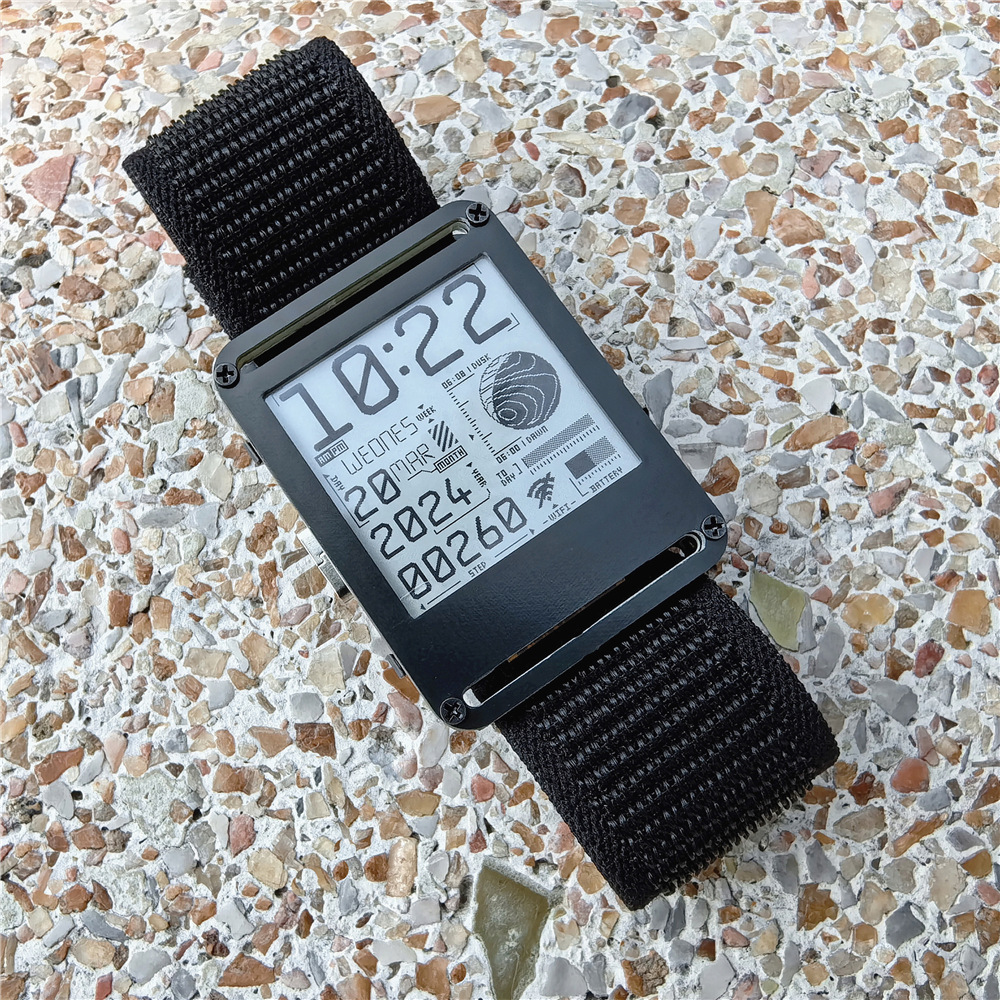

Watch is an E-Paper watch with open source hardware and software. It has a barebones design utilizing the PCB as the watch body, allowing it to be worn as-is, or further customized with different 3D printed cases and watch straps. It is a unique timepiece that is also a wearable development platform, allowing users to create their own experience.

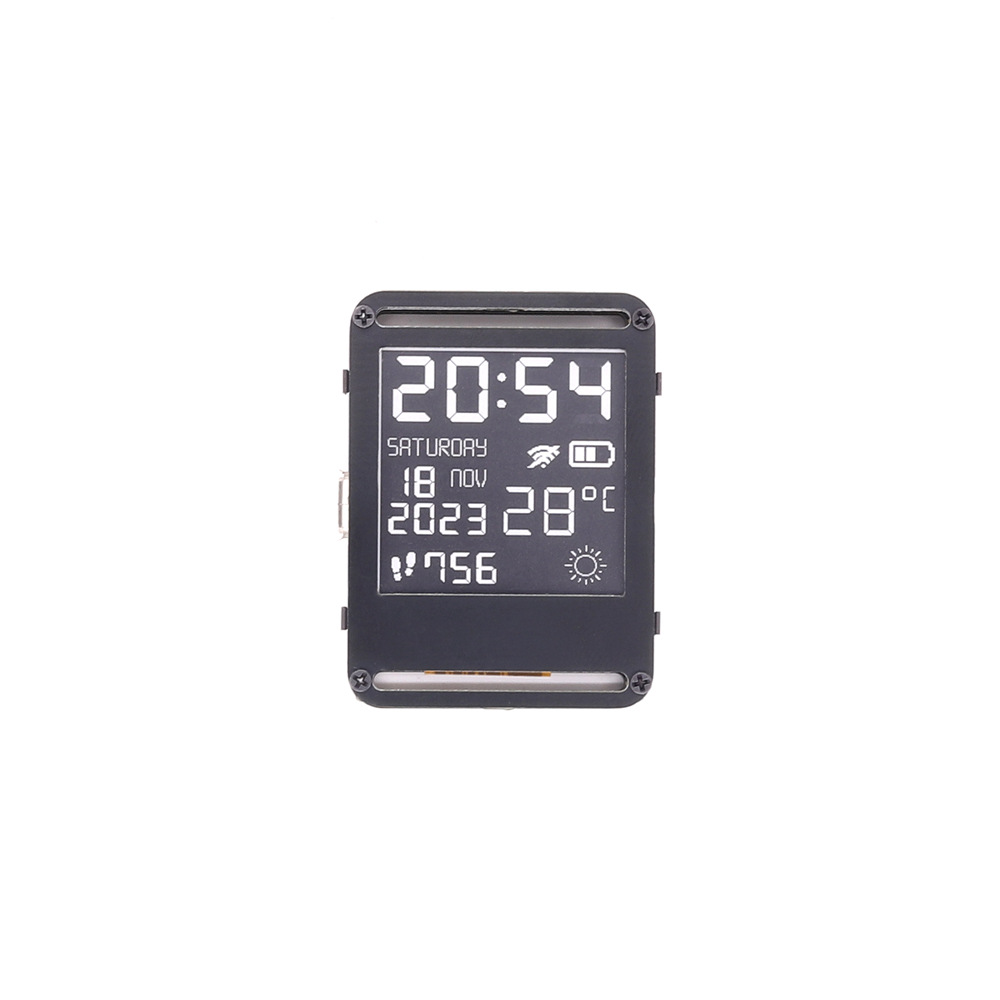

Watchy's E-Paper display delivers a beautiful crisp image clearly visible under bright sunlight, and requires no power between updates. At 200x200 pixels and monochrome, the display offers a distinctive aesthetic.

Watch has both WiFi & Bluetooth LE connectivity, allowing it to connect with internet APIs (e.g. Weather, News, Traffic, Maps, Spotify, etc.), as well as Bluetooth LE enabled devices.

With makers/hackers/tinkerers in mind, we chose the ESP32 for its large community and support for a wide variety of development options (Arduino, Micropython, ESP-IDF, Zephyr-RTOS, etc.)

Features & Specifications
1.Ultra-low-power e-paper 1.54" display with 200 x 200 resolution and wide viewing angle
2.Wi-Fi & Bluetooth LE connectivity
3.3-axis accelerometer with gesture detection
4.Real-time clock for accurate time keeping with calendar and alarm functions

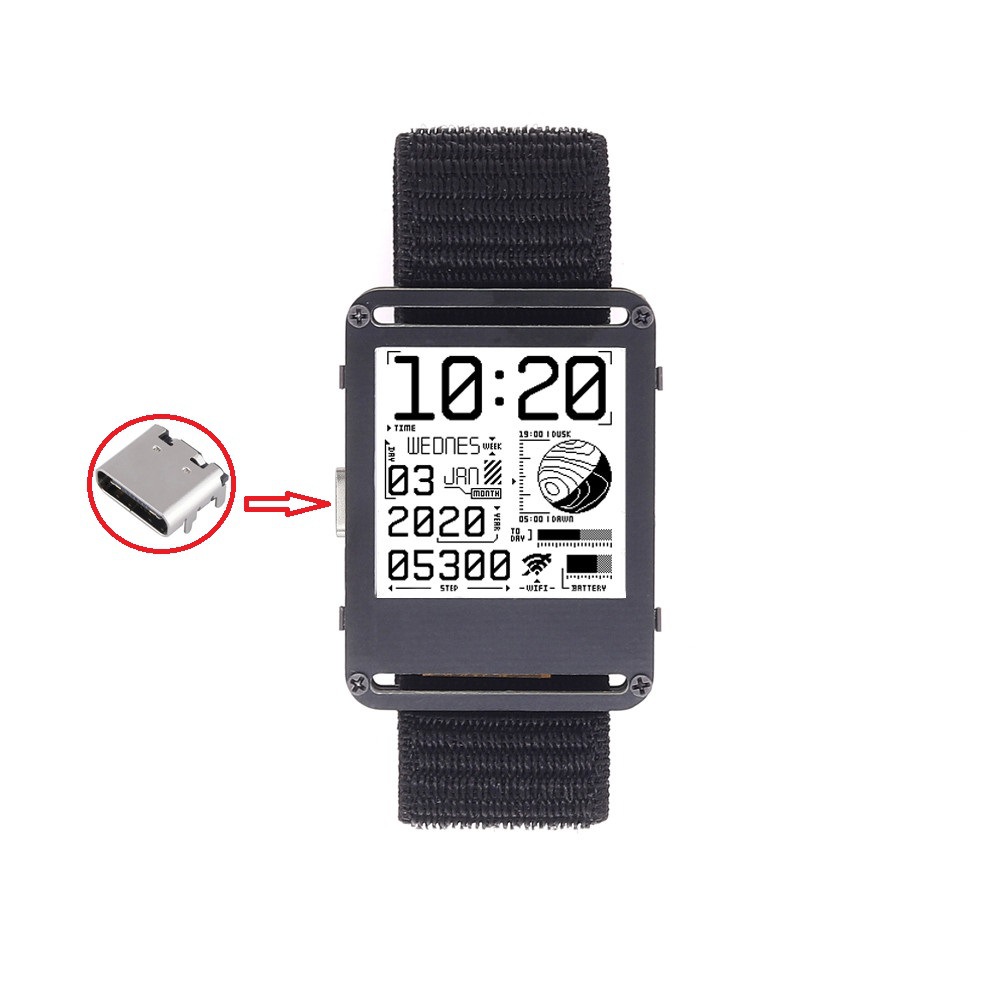

5.Built-in USB-to-serial adapter for programming on the go
6.Vibration motor for alerts

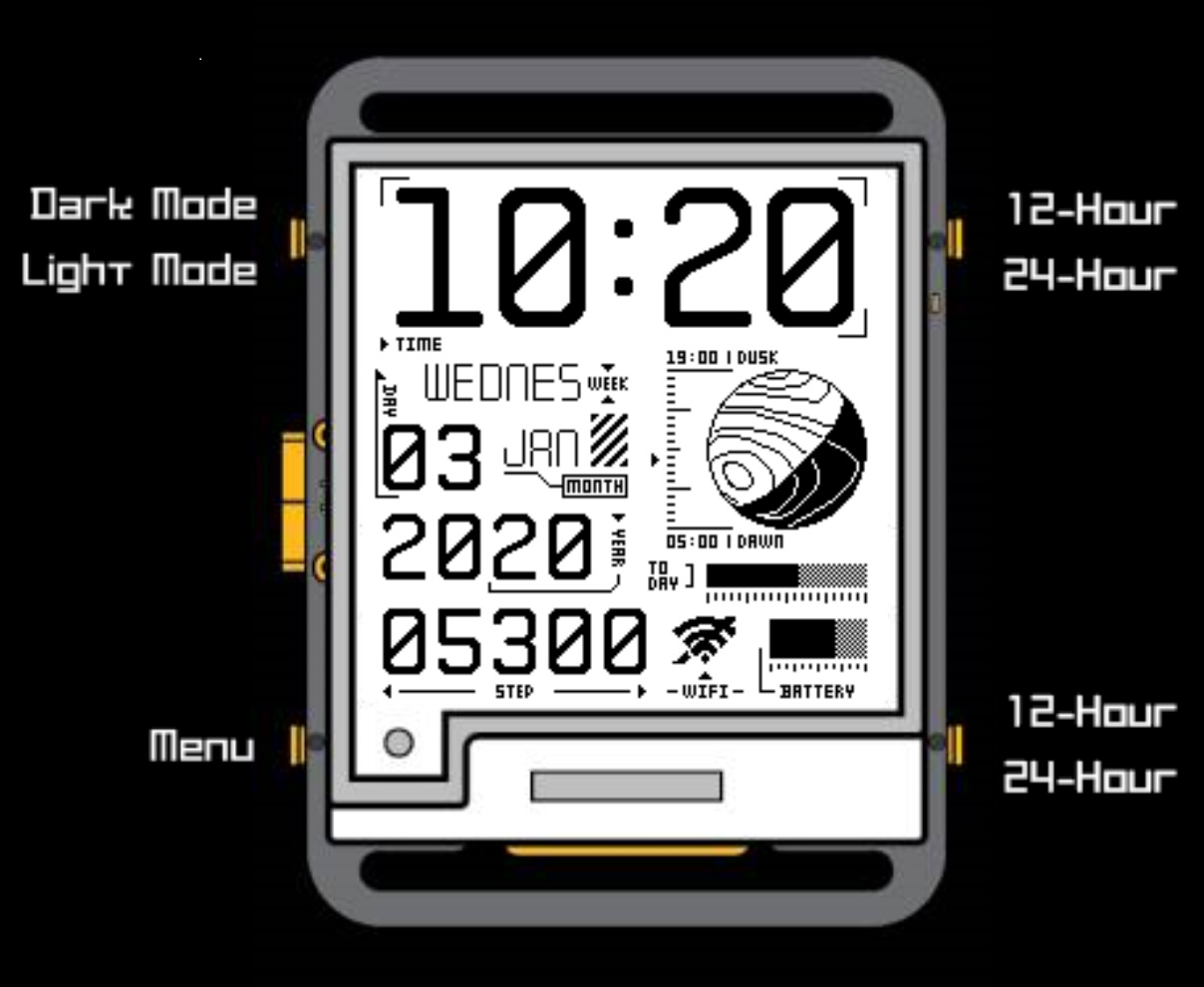

7.Four tactile buttons
8.Open source hardware & software

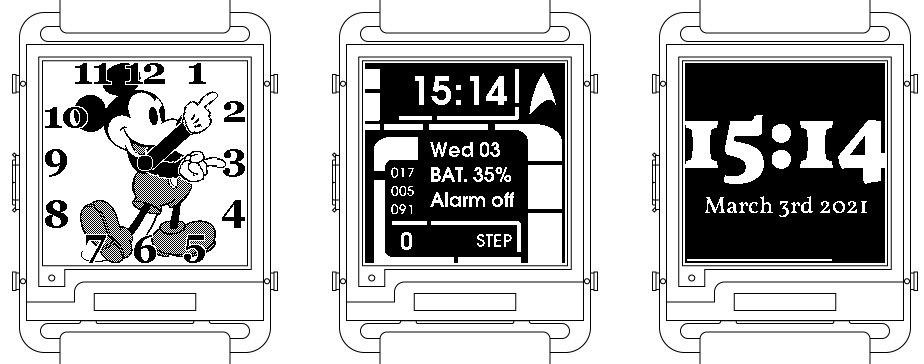

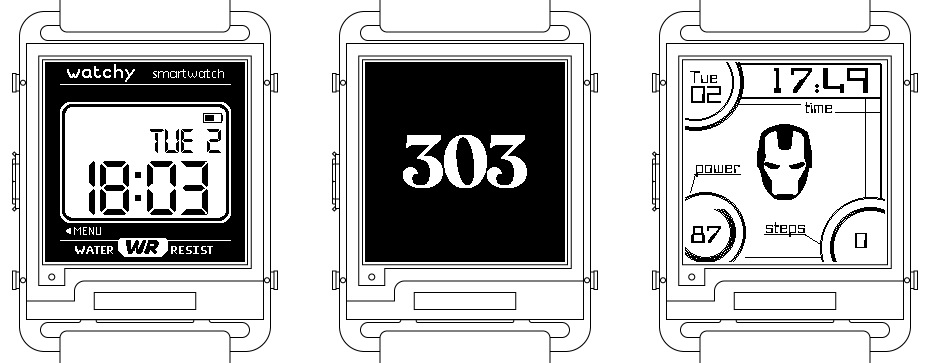

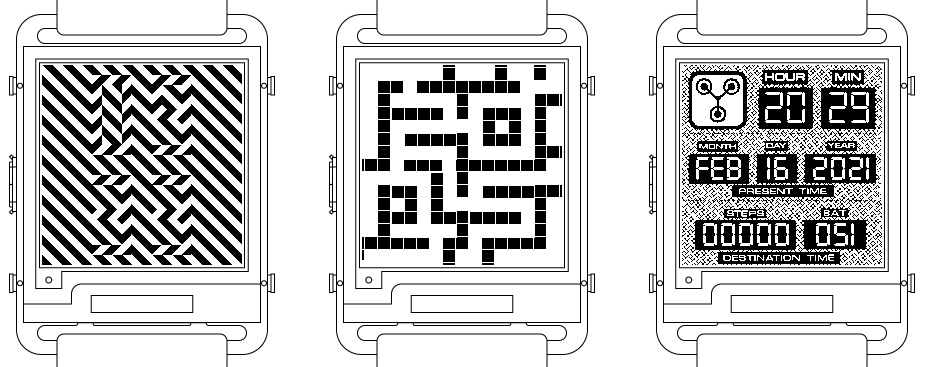

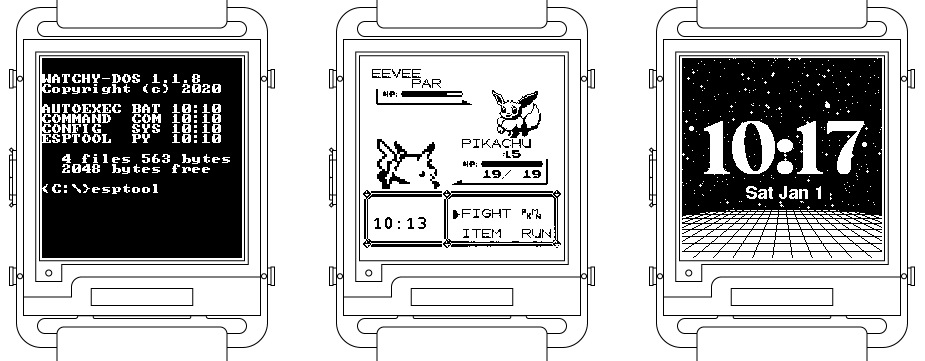

9.Tons of examples & cool watch faces
10.open source 3D case designs

Package included:

 1 x Watch V2.0 Including 200mAh battery(45x34x10mm)

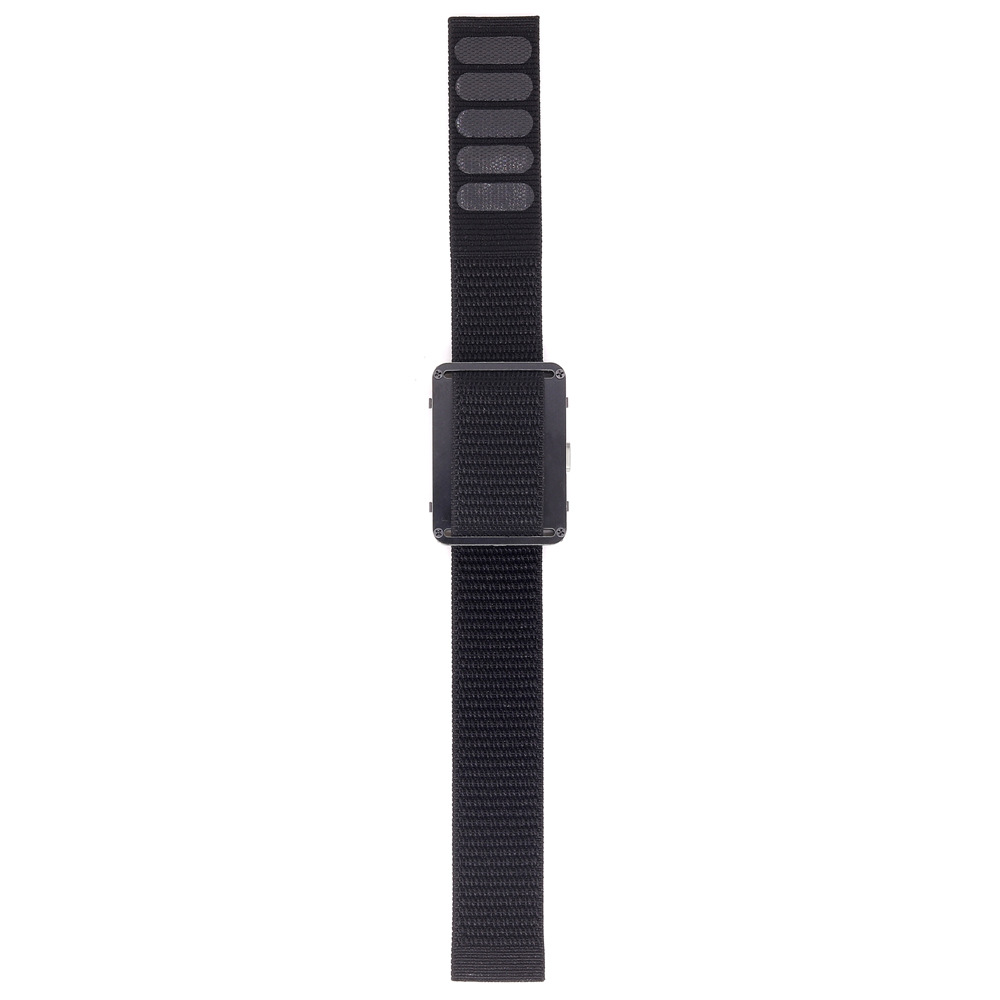

 1 x Velcro strap for Watchy（black 24mm x 250 mm）

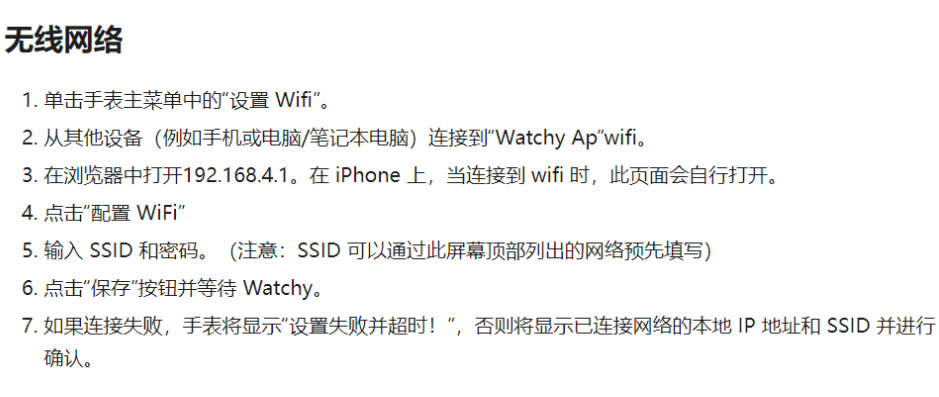

 Wireless network

1. Click Set Wifi in the watch main menu.
2. Connect to the "Watchy Ap" wifi from another device, such as a mobile phone or computer/laptop.
3. Open 192.168.4.1 in your browser. On an iPhone, this page opens on its own when connected to wifi.
4. Click on "Configure WiFi"
5. Enter the SSID and password. (Note: SSID can be pre-filled through the network listed at the top of this screen)
6. Click the "Save" button and wait for Watchy.
Seven. If the connection fails, the watch will display "Setup failed and timed out!" Otherwise, the local IP address and SSID of the connected network are displayed and /confirm/ied.
